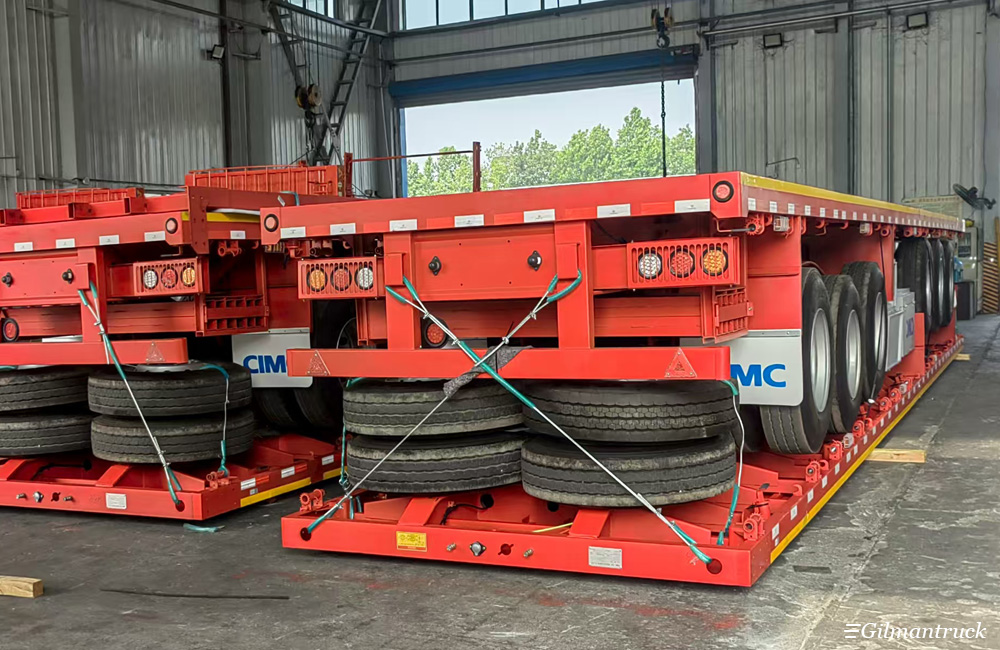

CIMC 3-axle 40-foot container flatbed semi-trailer
| Condition | New |
|---|---|
| Brand | CIMC |
CIMC 3-axle 40-foot container flatbed semi-trailer Specifications & Features
| Basic Information | |
|---|---|
| Overall size | 12500length*2500width, height will be adjusted according to matched tractor. |
| Drive | 6x4 |
| Alex | 13T FUWA, braking pad 220mm width, no ABS |
| Tyre | 12R22.5-18PR, with one spare tyre |
| Rim | 9.0-22.5 | Leaf spring | 90mm width*10pieces*13mm thiness |
| Braking system | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. |
| Electrical system | 24 volt electrical system. LED lights, 7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors. |
| Suspension | CIMC HUAJUN reincorced |
| Relay valve | WABCO |
| Landing gear | JOST A300C, one side operation |
| Kingpin | JOST 90# KZ1412, bolted type |
| Tie-in | Haldex |
| Twist lock | Can load one 40-foot container or two 20-foot containers |
| Floor | 3mm checkered |
| Upper and lower wing plates | 14/16mm, using the highly quality Q345 steel, |
| Main beam | 500mm, using the highly quality Q345 steel |
| Side beam | 16# channel steel |
| Rope tensioner | 42# factory standard under the side beam |
| Cross beam | 80*40 square tube |
| Tool box | one |
Frequently Asked Questions
Thank you for your interest in used trucks from China. You can contact us via email or WhatsApp, please feel free to submit your inquiry in the form above, and we will respond to you as soon as possible.
1. Will there be a quality inspection conducted on the vehicle before shipping?
We will provide customers with high-definition videos before shipment, and complete all quality inspections of the vehicle before delivery. Additionally, we will provide you with a factory inspection certificate and relevant inspection and testing certificates upon delivery.
2. Does the price you quoted including shiping?
It is up to the terms of payment you prefer. Both CIP & CIF include the shipment fee.
3. Will you purchase commercial insurance for vehicles during shipping?
Yes, whether within China or abroad, we will purchase insurance for vehicles during shipping.
4. What information is included in the contract?
Once you confirm the vehicle and price, we can proceed to sign the contract. We will prepare an international trade contract and a proforma invoice (PI) for you.
The contract will include product information, payment methods, receiving bank details, delivery time and so on.
As per the agreement in the contract, you will be required to pay a deposit within the specified timeframe.
5. What are your payment terms?
T/T, L/C. We prefer T/T 30% as the deposit, and USD and EUR are acceptable.
Before the goods are officially shipped from China Customs, we need you to pay the remaining 70% of the payment.
6. How long can I get my order finished?
Typically around 30 days, but specifics may vary according to the contract.
7. Can I replace the tires with brand new ones?
Of course, if you agree to pay, we can replace the tires with brand new ones.
